Tris Home Camera Set Up User Manual

Follow the steps below to set up and configure your Tris Home camera. Images referenced in the manual are loaded from the site assets.

Tris Home Camera Set Up User Manual

Download and install the App

Tips one: Click to Download the Tris Home App
Tips two: Search"Tris Home" in the App store and download.

Turn on the power

Power on the camera, turn on the device, it will send " system starting up, wait be configured, Wait for the connection, please configure the network according to the Instructions" prompt after several seconds, If the camera does not have a prompt sound for a long time, you can press and hold the camera Reset button until you hear the prompt " Restore factory settings, please do not power off "and release it to restore the camera to factory settings and then configure the network.
Note:
If you need local storage, please install the memory card firstly, and then power on the device (the memory card does not support hot swapping, please plug and unplug the memory card when the device is powered off). Cloud storage is recommended, which is safe and convenient.

Configure the network of the camera

  1. Connect your phone to WiFi network and turn on Bluetooth.
  2. Open the Tris Home app, register an account and login (Figure 1) .
  3. After successful login, Click the "+" button in the top right corner of the screen (Figure 2) .

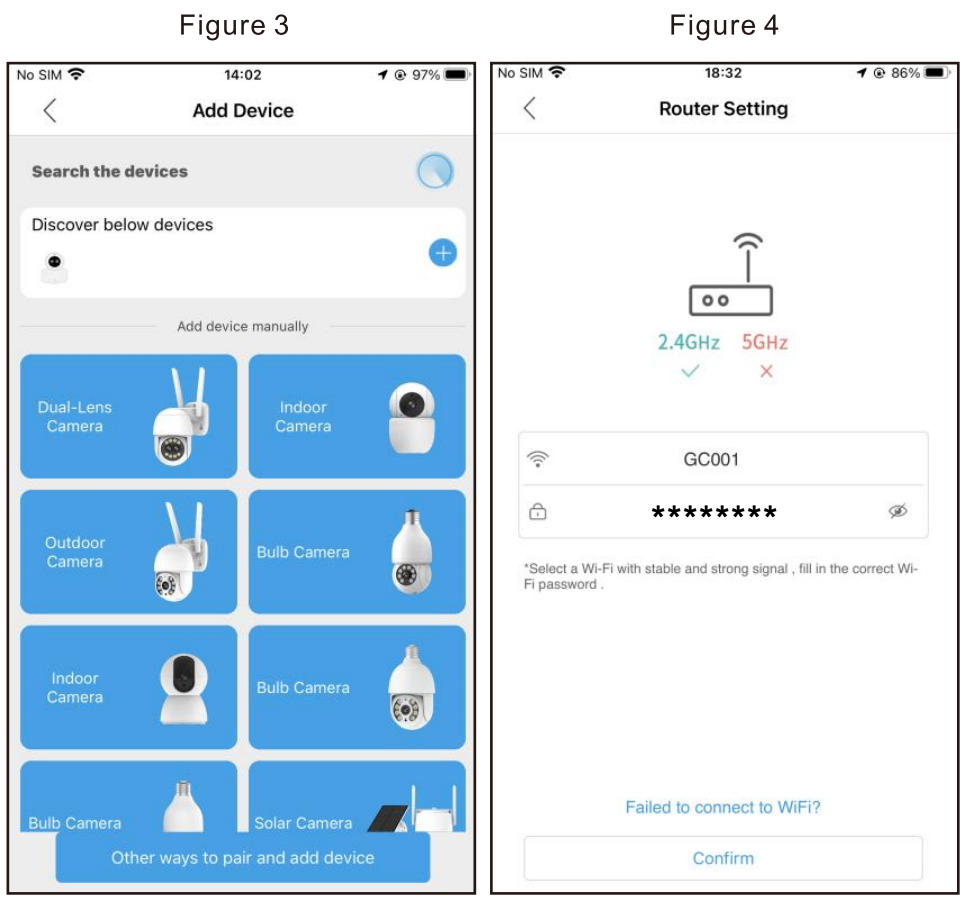

  4. Click the camera picture you buy (Figure 3) according to the instruction.
  5. Input the wifi password and confirm (Figure 4).

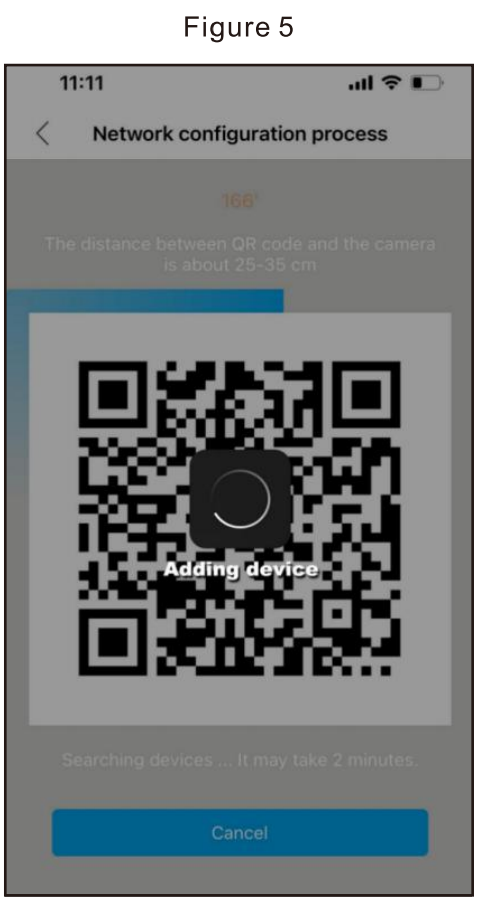

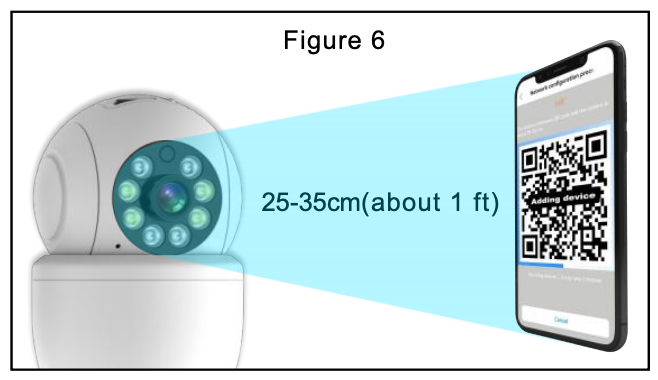

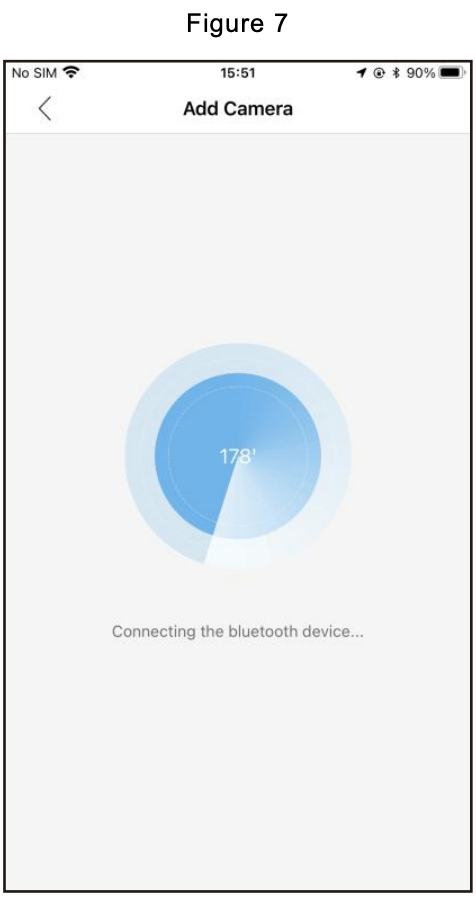

  6. Please show the QR (Figure 5) on the phone to camera lens around 25-35cm(about 1 ft) (Figure 6), If the QR disappear and hear "Connecting" it means the device is connect network (Figure 7).

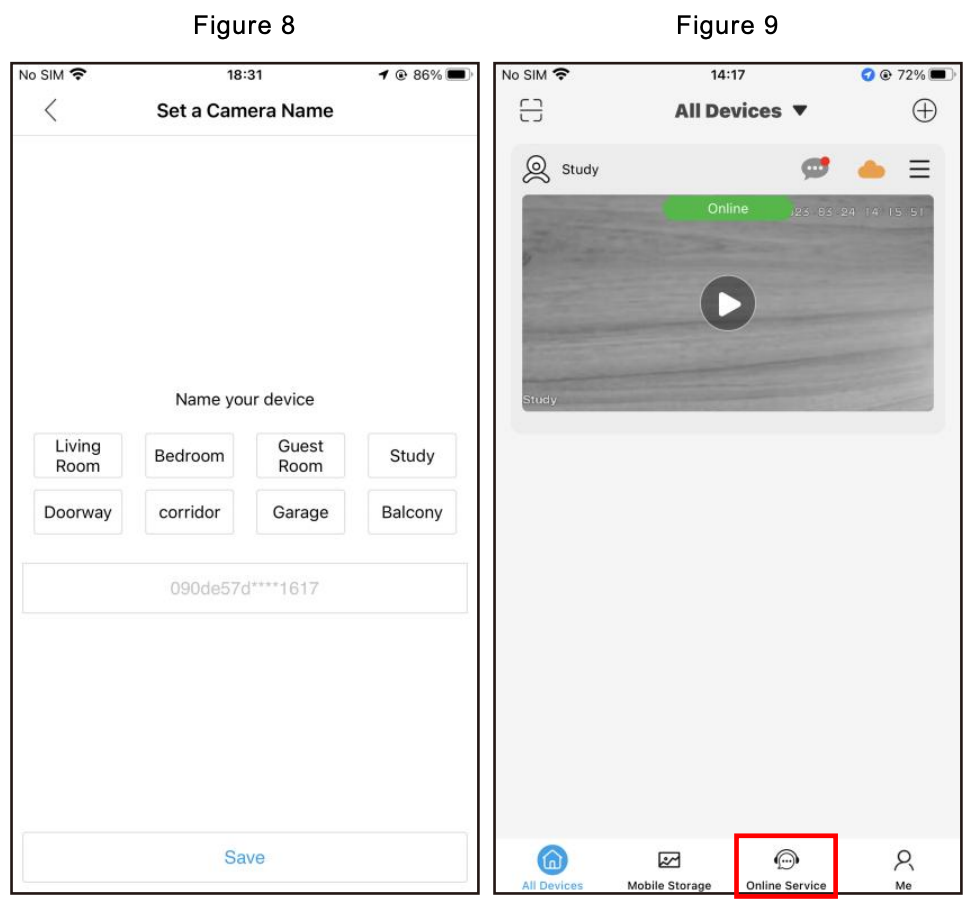

  7. When the camera remind "Connect router successfully" means the camera is connect success and please revise the camera name (Figure 8) .
  8. Follow the APP interface to guide you through the setup.After the configuration is completed, the device is displayed in the device list interface. Click to open the real-time preview screen, and carry out relevant operations and settings (Figure 9) .

    Notice
  9. Please change the user password while using this product to avoid being misappropriated by criminals.
  10. Do not install the device in a place that is damp, dusty, or accessible to children.
  11. Please use and store within the allowable temperature and humidity range, and do not disassemble the equipment at will.
